Picture for reference only
Application:
The machine GH350 is designed for hot stamping on all shape of glass bottles and cups at high production speeds. It is suitable for all shape of glass containers stamping with primer base. And it is capable of stamping glass containers with or without registration point. Reliability and speed make the machine ideal for off-line or in-line 24/7 production.

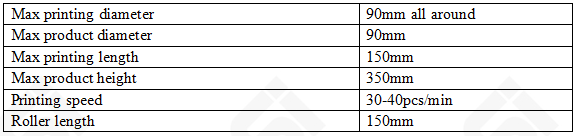

Tech-data:
Description:
Automatic loading with servo driven robot. Bottles standing up on the conveyor
Auto hot stamping with pneumatic support
Servo driven stamping head with pressure on each jigs individual adjustable
All jigs driven by individual servo motor
Motor driven roller
Foil press system
Indexer driven horizontal rotary table system, 4 stations
High accuracy indexer from Japan
Auto unloading with servo driven robot, bottles standing up on conveyor after unloading
Well built machine house with CE standard safety design
PLC control with touch screen display
